Create a Custom Image

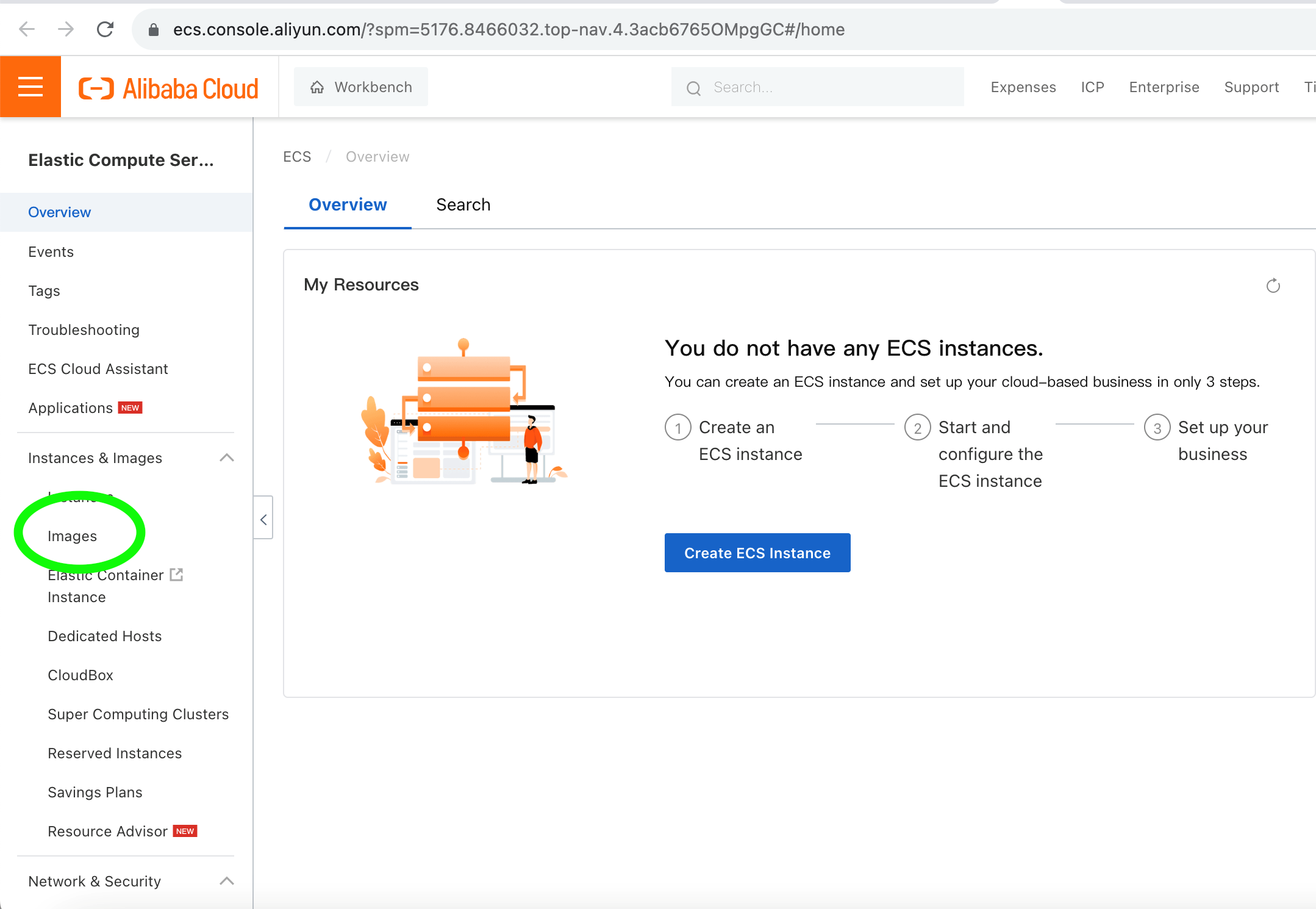

- Select the Alibaba Elastic Compute Service (ECS).
- Select Instances & Images > Images > Custom Images.

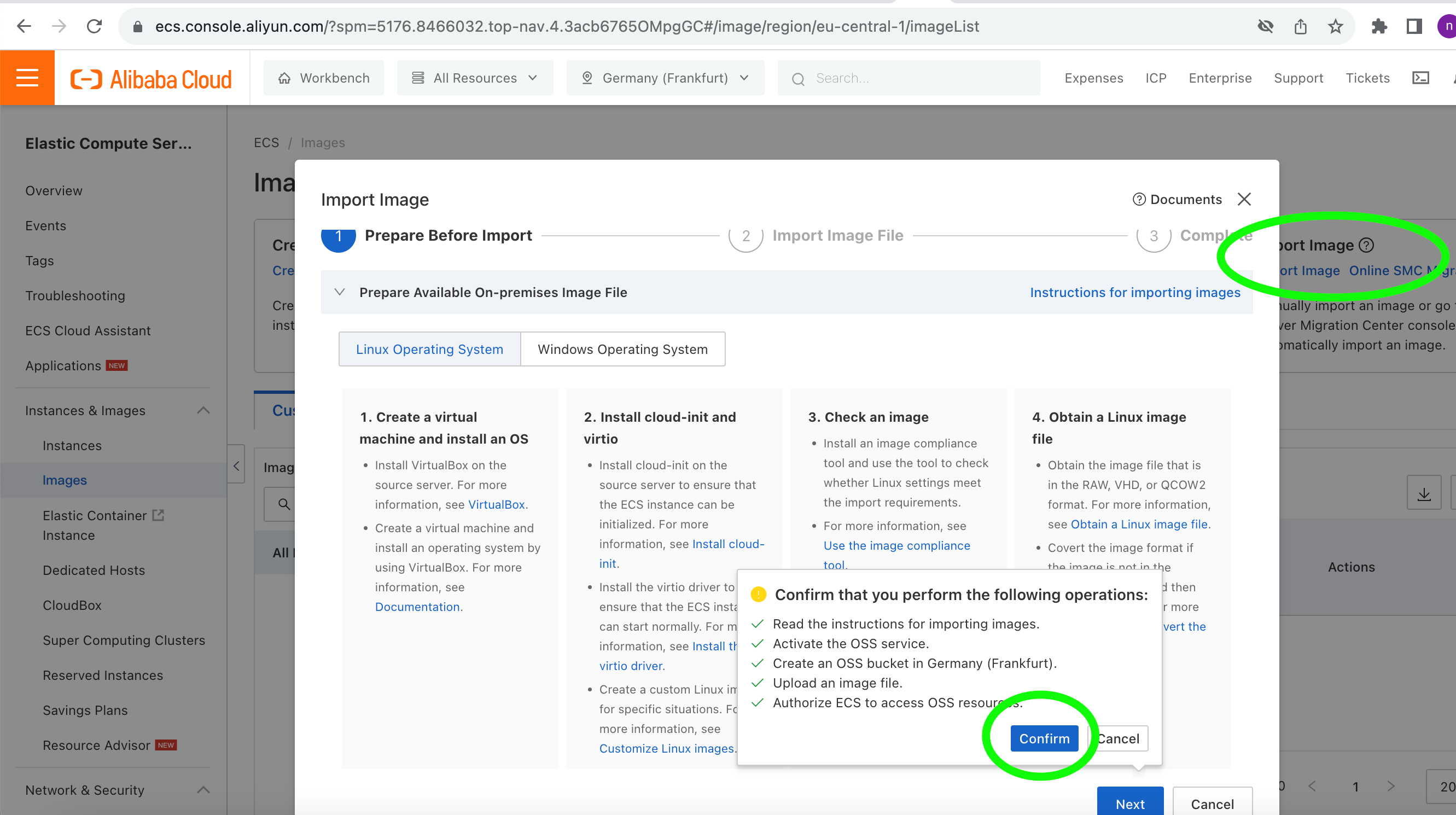

- Click the Import Image button.
- Paste the forwarder-va.raw URL in the Import Image window. See Upload the Secure Access
VHD Images to the OSS Bucket for where to find the URL.

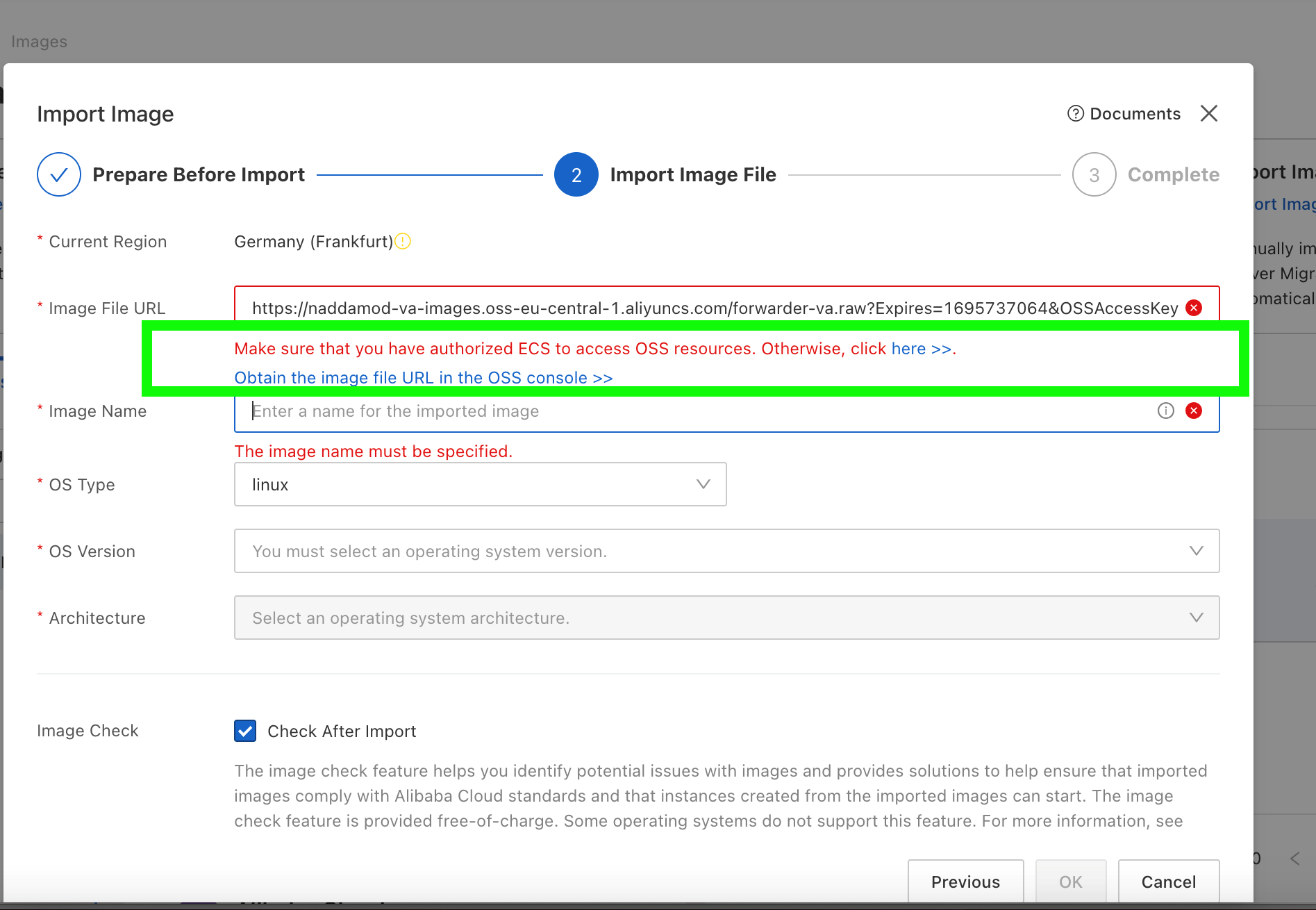

If the following error is seen, ECS does not have access to the OSS resources. Enable access by clicking the here hyperlink shown.

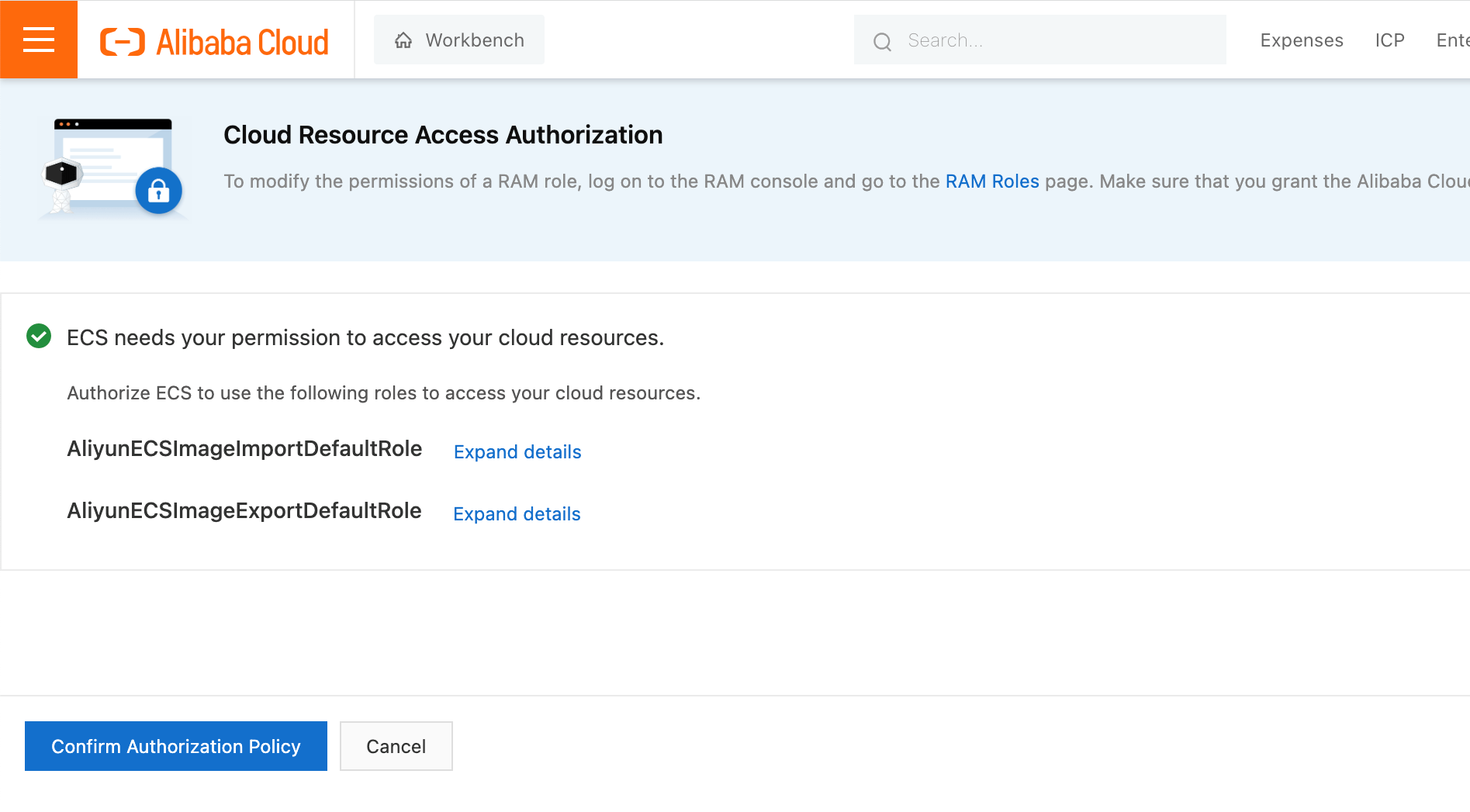

- If necessary, click the Confirm Authorization Policy button.

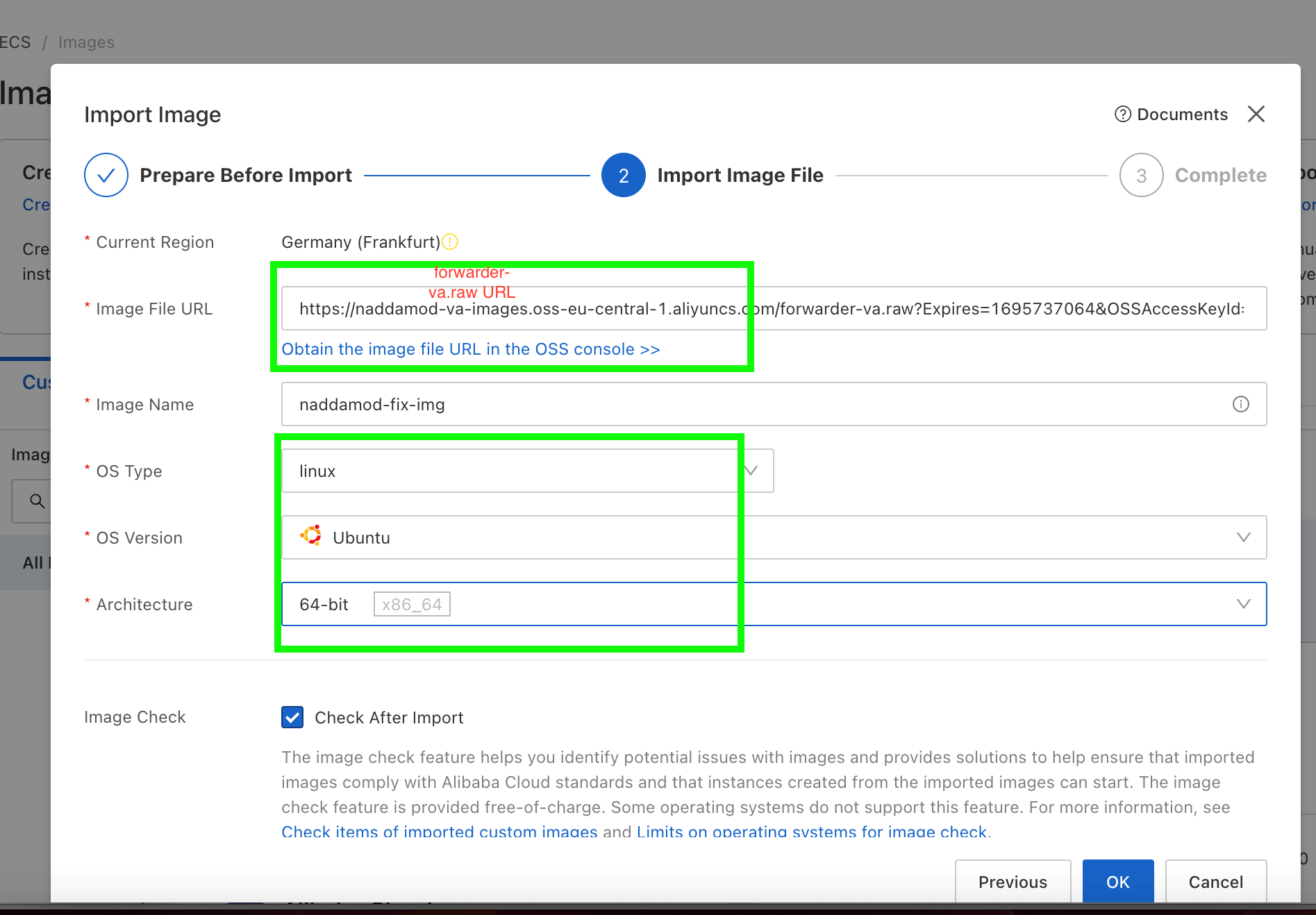

- Repeat the Import Image action and fill the necessary fields as below.
- Check the Configure Disk Attributes box and adjust the Disk SizeGiB
setting.
Make sure that the forwarder-va.raw disk size is 6.5 GB. - Repeat for the dynamic.vhd file.
Make sure that the dynamic.vhd disk size is 20 MB.

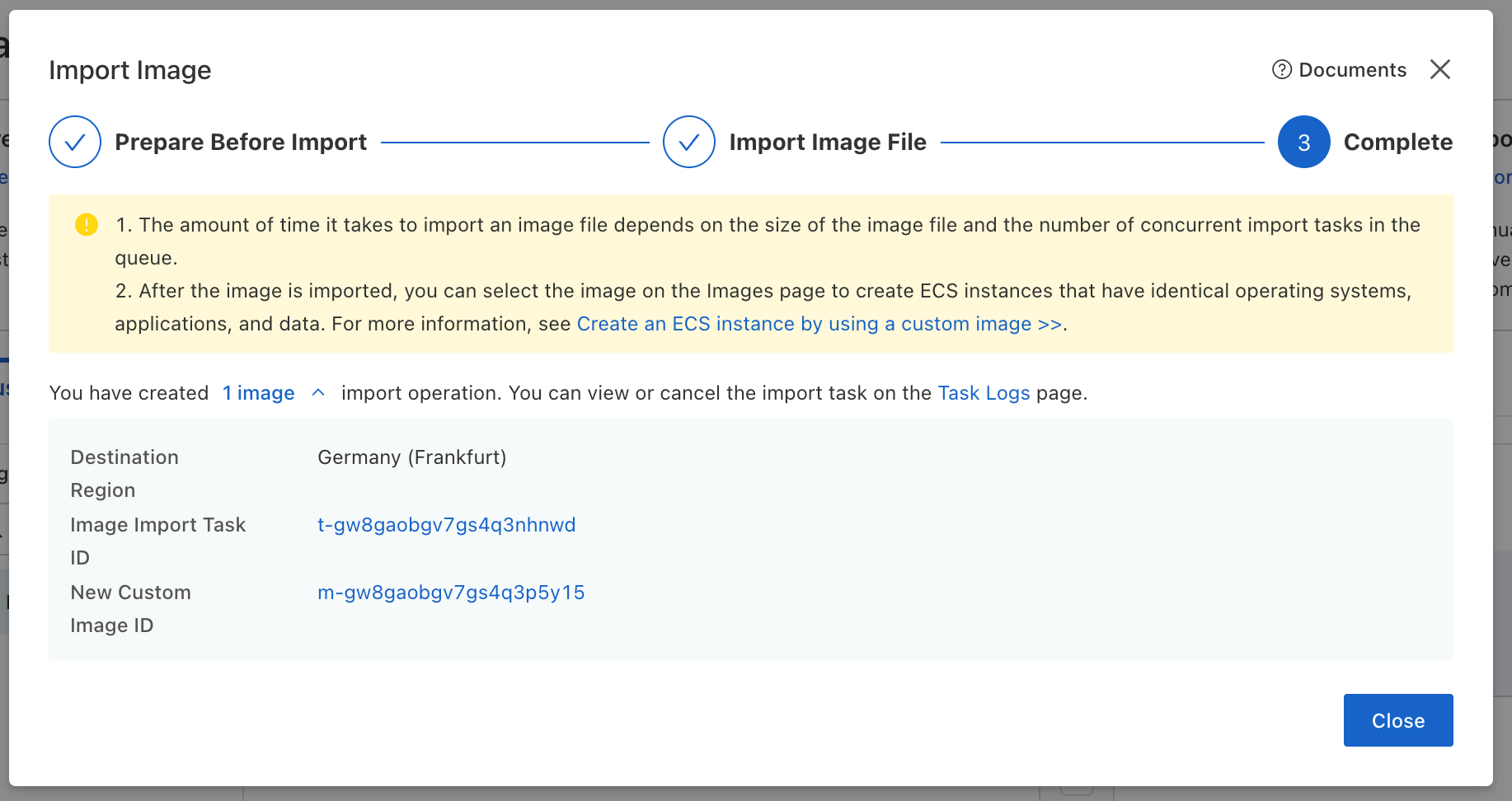

- If the image is successfully created, the following window is shown.

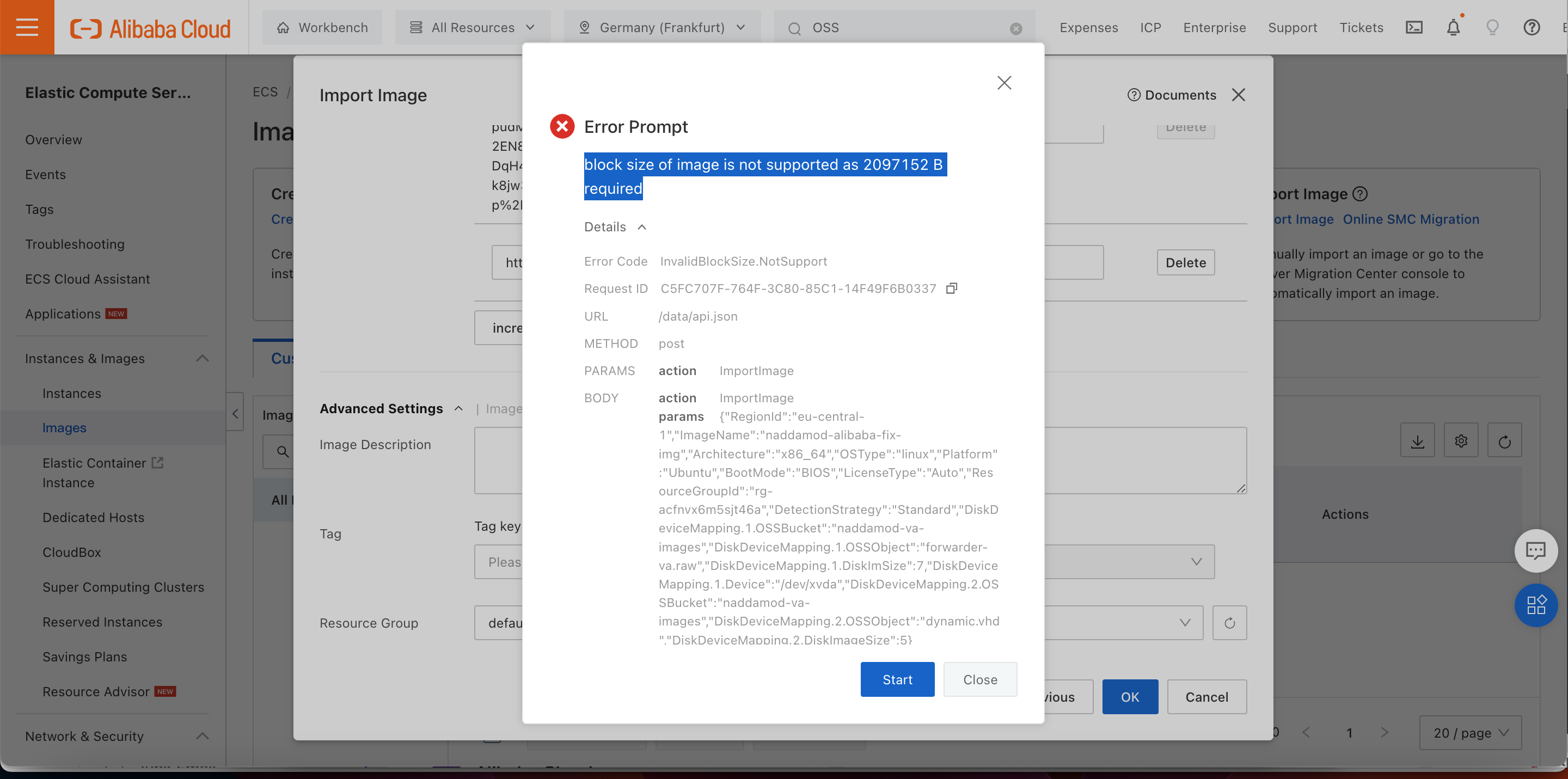

- Note that if the forwarder-va.vhd is uploaded instead of .raw image, or if the size is not
supported, the following error is shown.
