Composite Destinations
You can add destinations directly on an internet rule. For more information, see About Configuring Destinations for Internet Access Rules.
- Navigate to .
- Navigate to Specify Access and then click on the search bar under To.

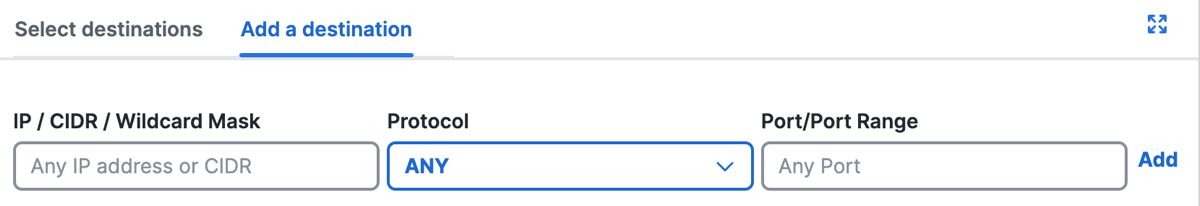

- Click Add a destination.
- For IP, CIDR, or Wildcard Mask, enter an IPv4 address or CIDR block, or IPv4
address with wildcard mask.
For example:
- IPv4 address—1.2.3.4
- CIDR block—1.2.3.4/24
- Wildcard mask—1.2.3.4/255.255.255.255
For Wildcard Mask, use the syntax:
<IP address>/<Wildcard Mask>. For information about wildcard masks, see Using Wildcard Masks on Internet Rules.
- For Protocol, choose from one of the supported protocols: ANY, TCP, UDP, or ICMP.
- For Port/Port Range, enter a port or range of ports separated by a hyphen (-).
- When you finish adding the composite destination, click Add.
- For IP, CIDR, or Wildcard Mask, enter an IPv4 address or CIDR block, or IPv4
address with wildcard mask.

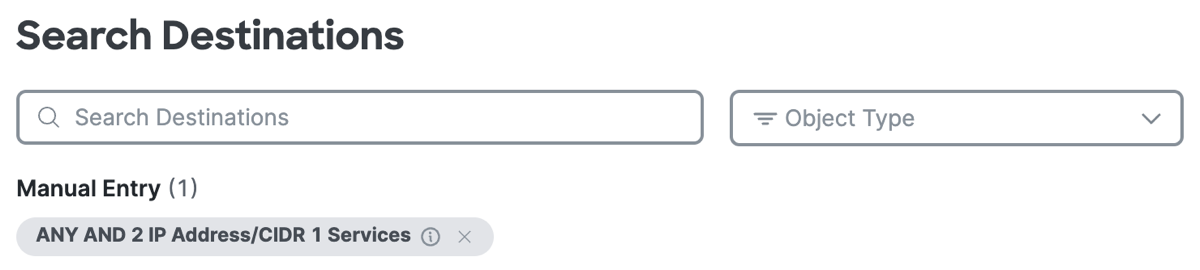

- After you add a destination component, click +More to view the list of destinations that you added to the rule. Click on the X to remove a previously-added destination. Click Done when the list of destinations is complete.
