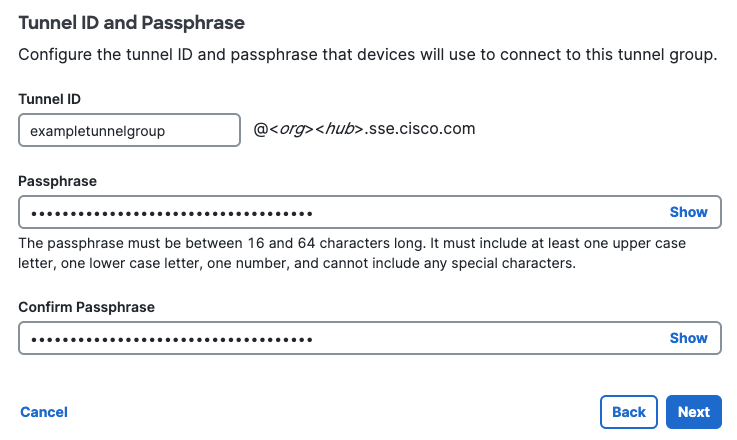

Step 2 - Tunnel ID and Passphrase
Configure the tunnel ID and passphrase that devices will use to connect to this tunnel group.
-
Enter Tunnel ID.
- Tunnel ID may be an email address or a primary and secondary pair of IP addresses.
- Tunnel ID format requirements are as follows for each device type selected in Step 1 - General Settings:
Device Type Tunnel ID Format Meraki MX Email Catalyst SDWAN Email ISR Email ASA Email OR IP address (primary and secondary) AZURE IP address (primary and secondary) FTD Email OR IP address (primary and secondary) Other Email OR IP address (primary and secondary) - Email tunnel ID requires the format <tunnel name>@<org><hub>.sse.cisco.com. Use the name you gave the tunnel group in Step 1 - General Settings.
- IP address tunnel ID requires both a primary and secondary IP address.
-
Enter a tunnel Passphrase between 16 and 64 characters in length. The passphrase must contain at least one upper case letter, one lower case letter, and one number. The passphrase cannot include any special characters.
-
Reenter your passphrase to confirm.
-
Click Next to continue.
