Verify Context Sharing in Secure Access
Service VPN IDs from Catalyst SD-WAN are automatically added to Secure Access as source resources when enabled from the SD-WAN Manager. Once added, these VPN IDs can be used when configuring access rules.
Procedure
| 1 |

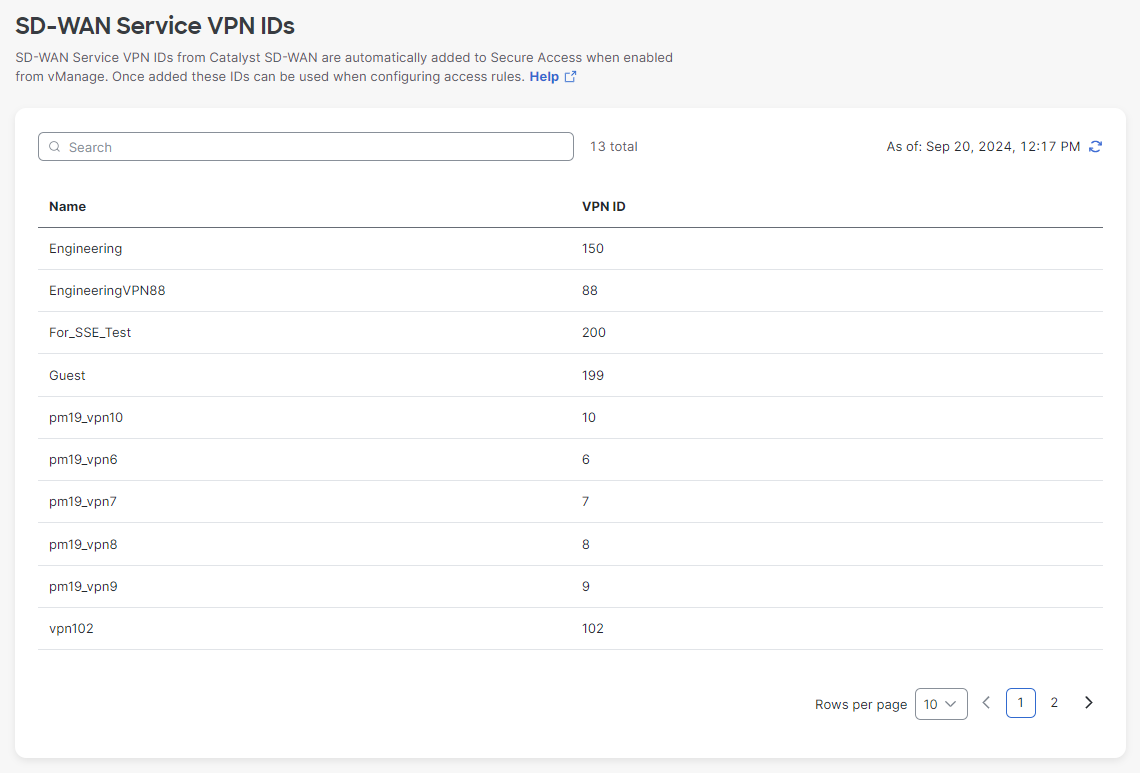

Navigate to to verify that the VPN IDs are shared as resources. |
| 2 |
Navigate to . |
| 3 |
Click the Add Rule drop down and choose Internet Access to verify that the VPN IDs are shared as source objects for internet access rules. |
| 4 |

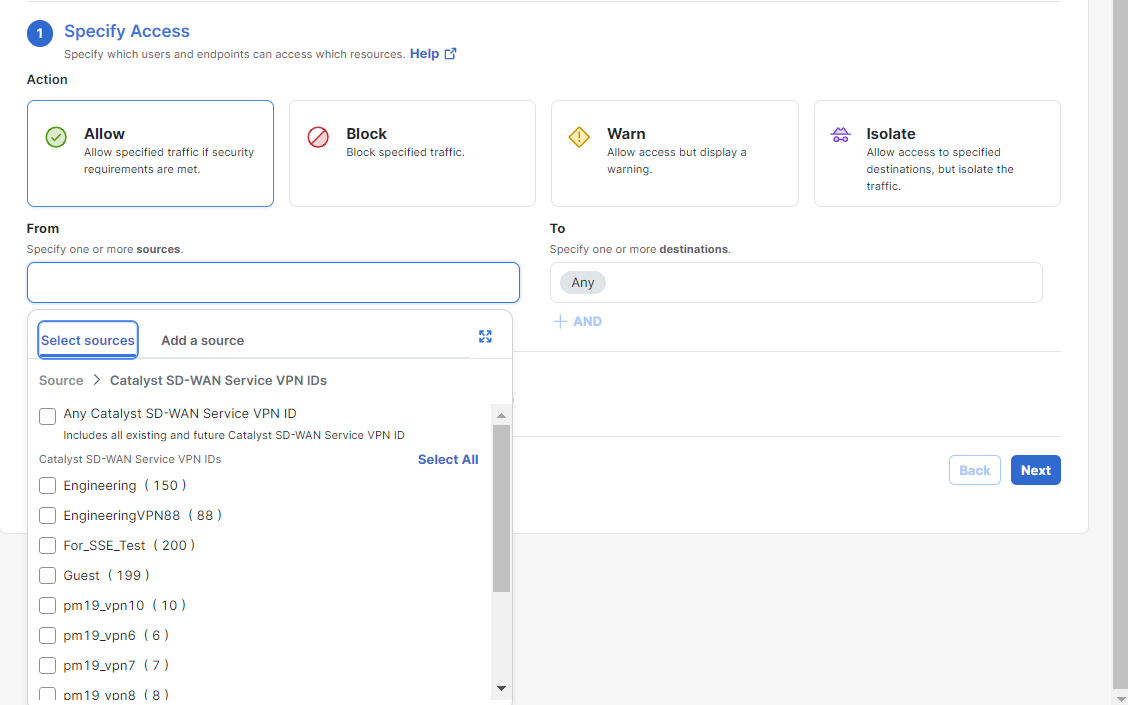

From the Select sources drop down, choose Catalyst SD-WAN Service VPN IDs as a rule source. From there, you can select Any Catalyst SD-WAN Service VPN ID, which will include all existing and future VPN IDs in the rule. Alternately, you can select any (or all) existing VPN IDs for more granular internet access rules. |
