Full Scope Queries

Example of Scope Hierarchy

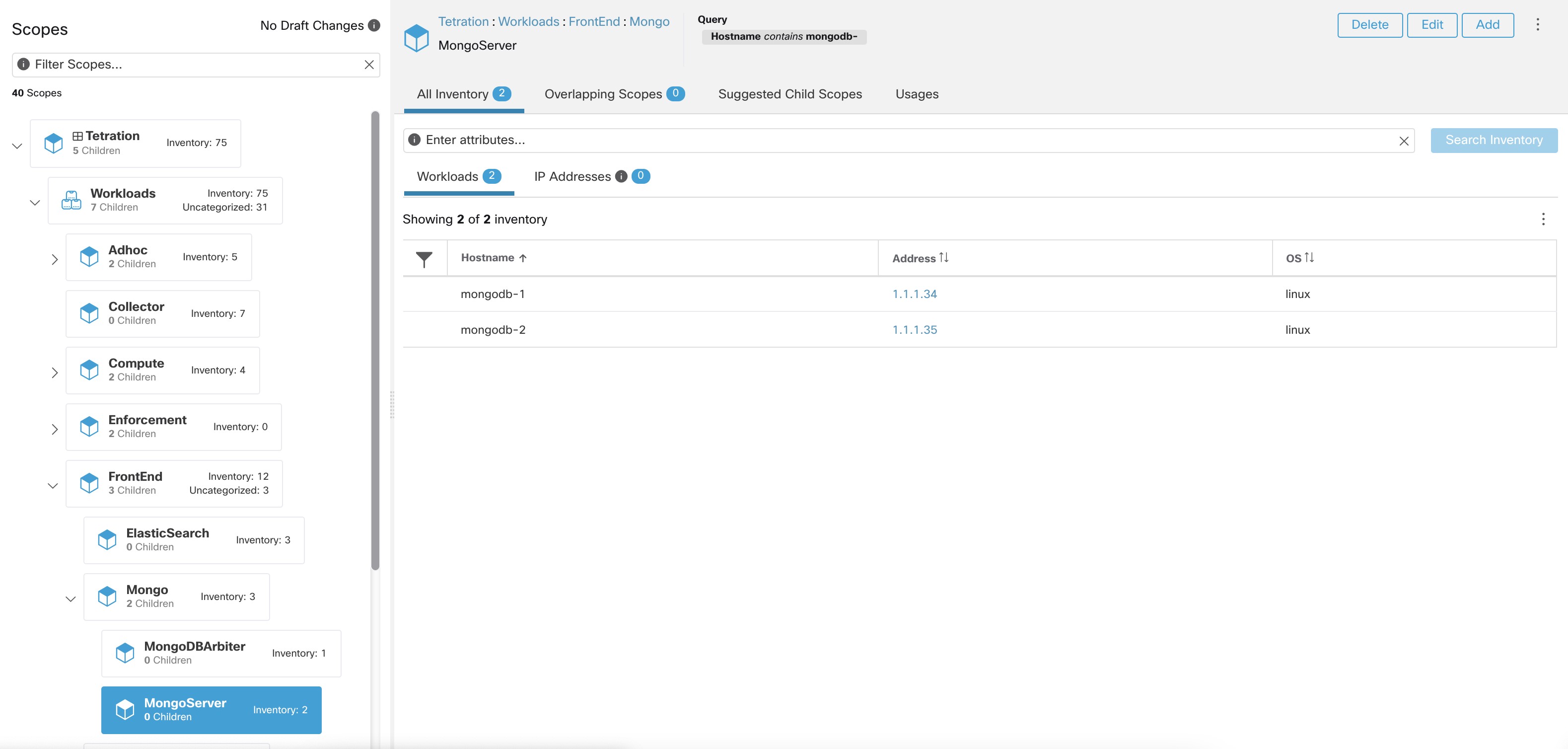

Figure 1: Example of Scope Hierarchy

Scopes are defined hierarchically, the full query of the scope is defined as the logical ‘and’ of the scope along with all of its parents. Using the example above, assets assigned to the Workloads:FrontEnd:Mongo

Scope would match:

vrf_id = 676767 and (ip in 1.1.1.0/24) and (Hostname contains mongo).

Where vrf_id = 676767 comes from the root scope query and ip in 1.1.1.0/24 comes from the parent scope query.




It is a best practice to not have overlapping queries at the same level. This removes the importance of ordering and reduces confusion. See Scope Overlap
