Rule Attributes

This section explains the details of the attributes to define a Network Anomaly related rule. The simplest Network Anomaly rule is:

Event Type = Network Anomaly

Other attributes in the Network Anomaly event to refine the rules for your data centers:

Table 1. Rule Attributes in Network Anomaly event
Attribute	Description
Host Name	The host name of the workload emitting this event.
Timestamp (epoch milliseconds)	The timestamp (in milliseconds) of the event.
PCR Deviation	The deviation of PCR from the mean at the event time as a multiple of historical standard deviation.
Non-seasonal Deviation	This is the PCR deviation after removing the seasonality pattern (for example, by cron-jobs). The value of Non-seasonal Deviation is always larger than or equal to 6.0.
PCR	The Producer-Consumer Ratio.
EIR	The Egress Ingress Ratio, which is the ratio between the total Egress App Byte Count and the Ingress App Byte Count.
Egress App Byte Count	The egress application byte count, which is the total byte count of packet contents (excluding headers) flowing out of the work-load.
Ingress App Byte Count	The ingress application byte count, which is the total byte count of packet contents (excluding headers) flowing into the work-load.
Protocol	The protocol for which the PCR time series is calculated. Currently, the supported protocols are TCP, UDP, and Aggregate. Aggregate PCR is calculated based on the total sum of TCP, UDP, and ICMP byte counts.
User Logon Count	The number of user login events on the workload within approximately the last 15 minutes. This is the count of the User Logon events regardless of whether there are matched rules. To know the details of the User Logon events, you must define rules to record the events for workloads of interests and view them on the Forensics Analysis page.
User Logon Failed Count	The number of users logon failed events on the workload within approximately the last 15 minutes. This is the count of the User Logon failed events regardless of whether there are matched rules. To know the details of the User Logon Failed events, you must define rules to record the events for workloads of interests and view them on the Forensics Analysis page.
Unseen Command Count	The number of unseen command events on the workload within approximately the last 15 minutes. This is the count of the Unseen Command events regardless of whether there are matched rules. To know the details of the Unseen Command events, you must define rules to record the events for workloads of interests and view them on the Forensics Analysis page.
Date Time (UTC) - Year	The year of the event time.
Date Time (UTC) - Month	The month of the event time (1, 2, . . . ).
Date Time (UTC) - Day	The day of a month of the event time (1, 2, . . . ).
Date Time (UTC) - Hour	The hour of a day of the event time (1, 2, . . . , 24).
Date Time (UTC) - Minute	The minute of an hour of the event time (1, 2, . . . , 60).
Date Time (UTC) - Second	The second of minute of the event time (1, 2, . . . , 60).
Date Time (UTC) - Day of Week	The day of a week of the event time (0-7, for Monday to Sunday).

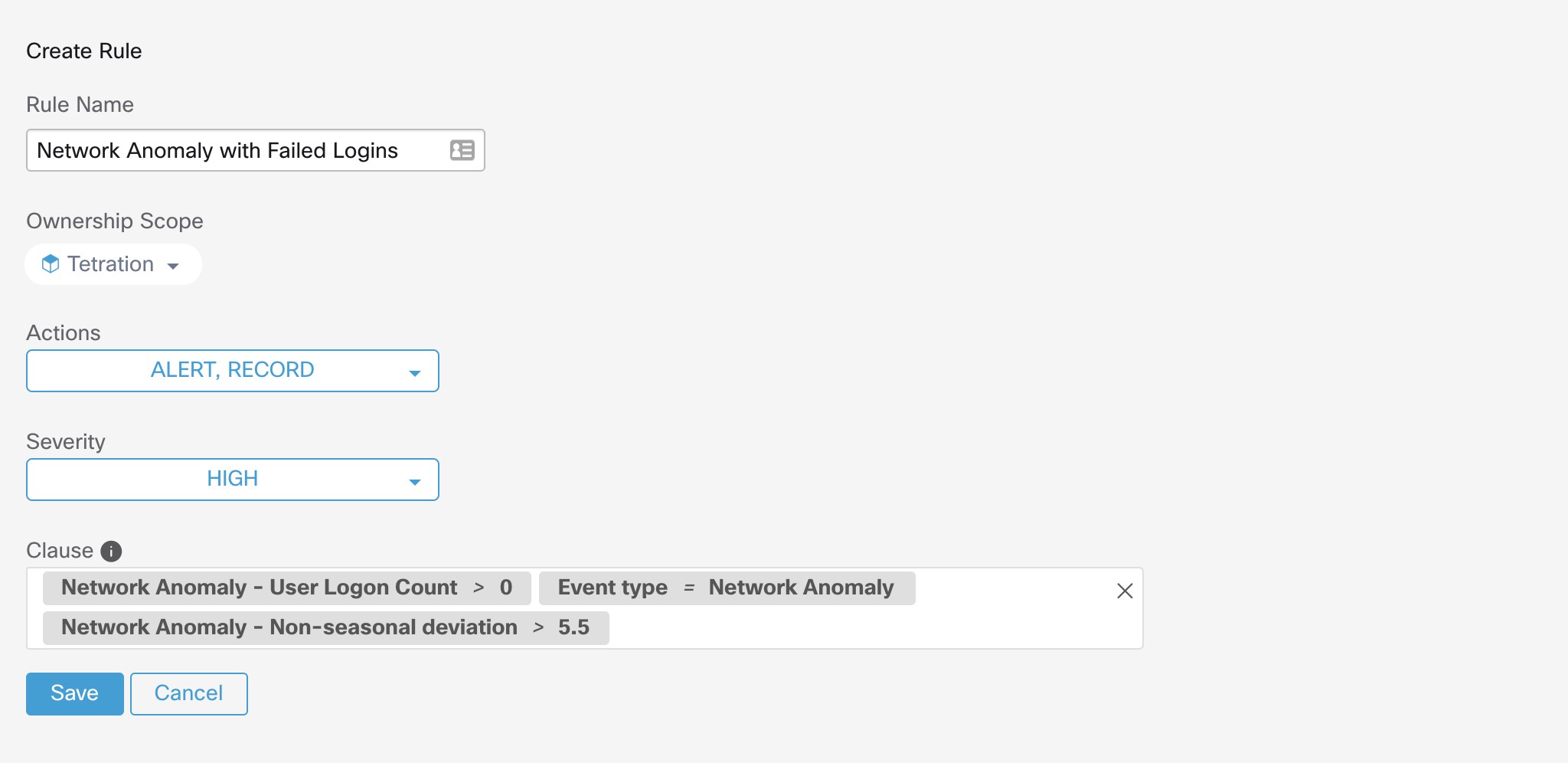

Defining forensic rules for Network Anomaly events — ***Figure 1: Defining Forensic Rules for Network Anomaly Events***

Below are some sample rules:

Listing 7.10.1.1.1: Detects network anomalies for UDP only.


    Event Type = Network Anomaly AND Network Anomaly Is = Protocol - UDP

Listing 7.10.1.1.2: Detects large deviation after removing seasonal pattern (if detected), with a threshold on the egress app byte count for a subset of workloads whose names contain sensitiveDataServer.


    Event Type = Network Anomaly AND Network Anomaly - Non-seasonal Deviation > 10.0)
    AND Network Anomaly - Egress App Byte Count > 1000000
    AND Network Anomaly - Host Name CONTAINS sensitiveDataServer

Listing 7.10.1.1.3: Detects Network Anomaly events on workloads with unseen command events except the Network Anomaly events happen from 7.30AM UTC to 7.35AM UTC everyday.


    Event Type = Network Anomaly AND Network Anomaly - Unseen Command Count > 0
    AND ( Network Anomaly - Date Time (UTC) - Hour != 7
    OR Network Anomaly - Date Time (UTC) - Minute < 30 OR Network Anomaly - Date Time (UTC) - Minute > 35 )
