How to configure IPFIX on F5 BIG-IP
The following steps are for F5 BIG-IP load balancer. (Ref: Configuring F5 BIG-IP for IPFIX)
|
Purpose |
Description |
|---|---|
|
1. Create a pool of IPFIX collectors. |
On a F5 BIG-IP appliance, create the pool of IPFIX collectors. These are the IP addresses associated with F5 connectors on a Secure Workload Ingest appliance. F5 connectors run in Docker containers on the VM listen on port 4739 for IPFIX packets. |
|
2. Create a log-destination. |
The log destination configuration on a F5 BIG-IP appliance specifies the actual pool of IPFIX collectors that are used. |
|
3. Create a log-publisher. |
A log publisher specifies where F5 BIG-IP sends the IPFIX messages. The publisher is bound with a log-destination. |
|
4. Add a F5 and Secure Workload approved iRule. |
Secure Workload and F5 developed iRules that will export flow records to F5 connectors. These iRules will export complete information about a given transaction: including all the endpoints, byte and packet counts, flow start and end time (in milliseconds). F5 connectors will create 4 independent flows and match each flow with its related flow. |
|
5. Add the iRule to the virtual server. |
In the iRule settings of a virtual server, add the Secure Workload, approved iRule to the virtual server. |

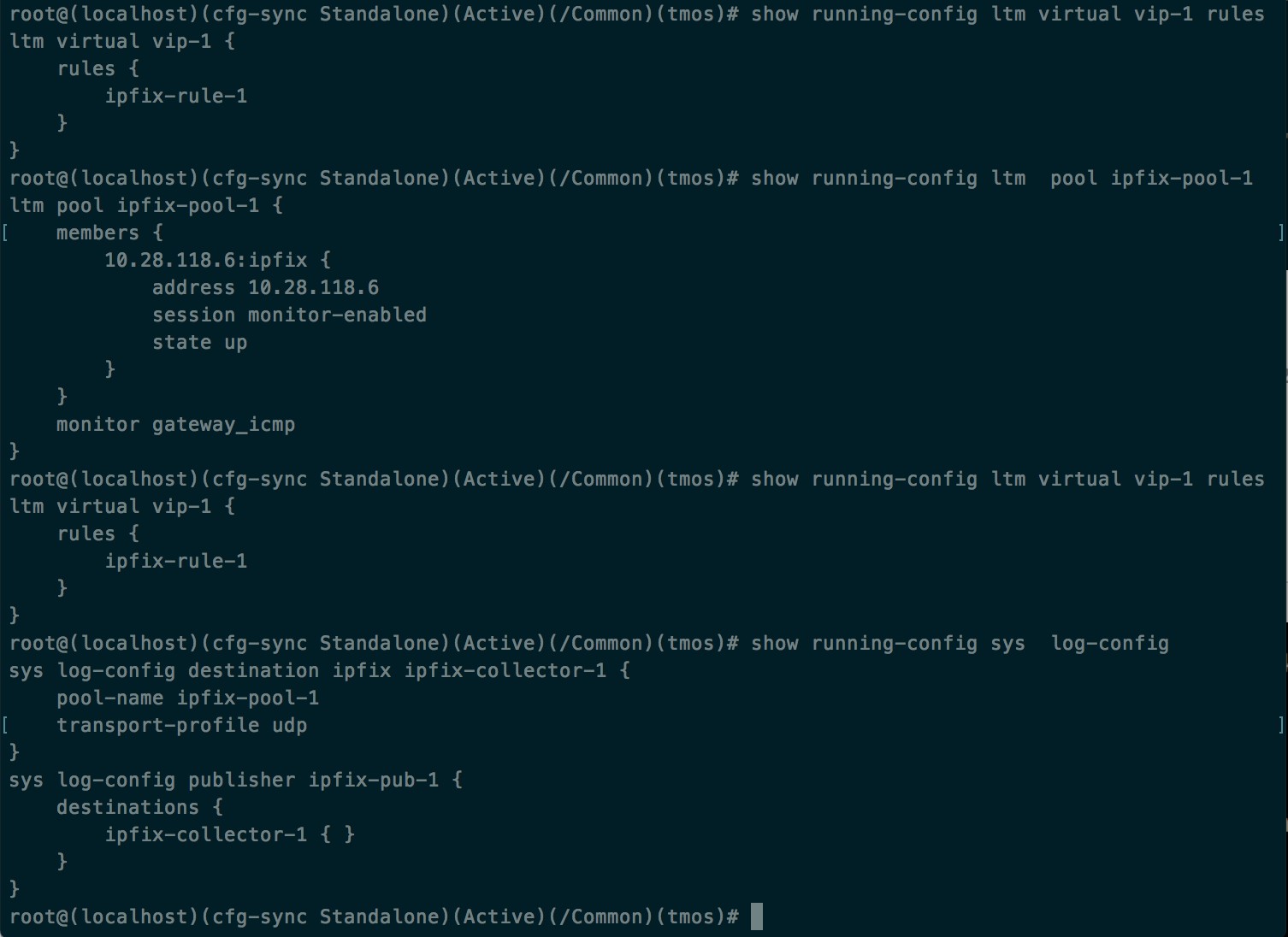

The above steps configures IPFIX on F5 BIG-IP load balancer to export IPFIX protocol packets for traffic going through the appliance. Here is a sample config of F5.
In the example above, flow records will be published to ipfix-pub-1. ipfix-pub-1 is configured with log-destination ipfix-collector-1 which sends the IPFIX messages to IPFIX pool ipfix-pool-1. ipfix-pool-1 has 10.28.118.6 as one of the IPFIX collectors. The virtual server vip-1 is configured with IPFIX iRule ipfix-rule-1 which specifies the IPFIX template and how the template gets filled and sent.
-
F5 and Secure Workload approved iRule for TCP virtual server. For more information, see L4 iRule for TCP virtual server.
-
F5 and Secure Workload approved iRule for UDP virtual server. For more information, see L4 iRule for UDP virtual server.
-
F5 and Secure Workload approved iRule for HTTPS virtual server. For more information, see iRule for HTTPS virtual server.
|
Before using the iRule downloaded from this guide, update the log-publisher to point to the log-publisher configured in the F5 connector where you add the iRule. |
|
|
F5 has published a GitHub repository, f5-tetration to help you to start with flow-stitching. The iRules for publishing IPFIX records to the F5 connector for various protocol types are available at: f5-tetration/irules. Visit the site for the latest iRule definitions. In addition, F5 also develops a script to:
This tool minimizes manual configuration and user error while enabling flow-stitching use-case. The script is available at f5-tetration/scripts. |
