Collect Snapshot From Connector

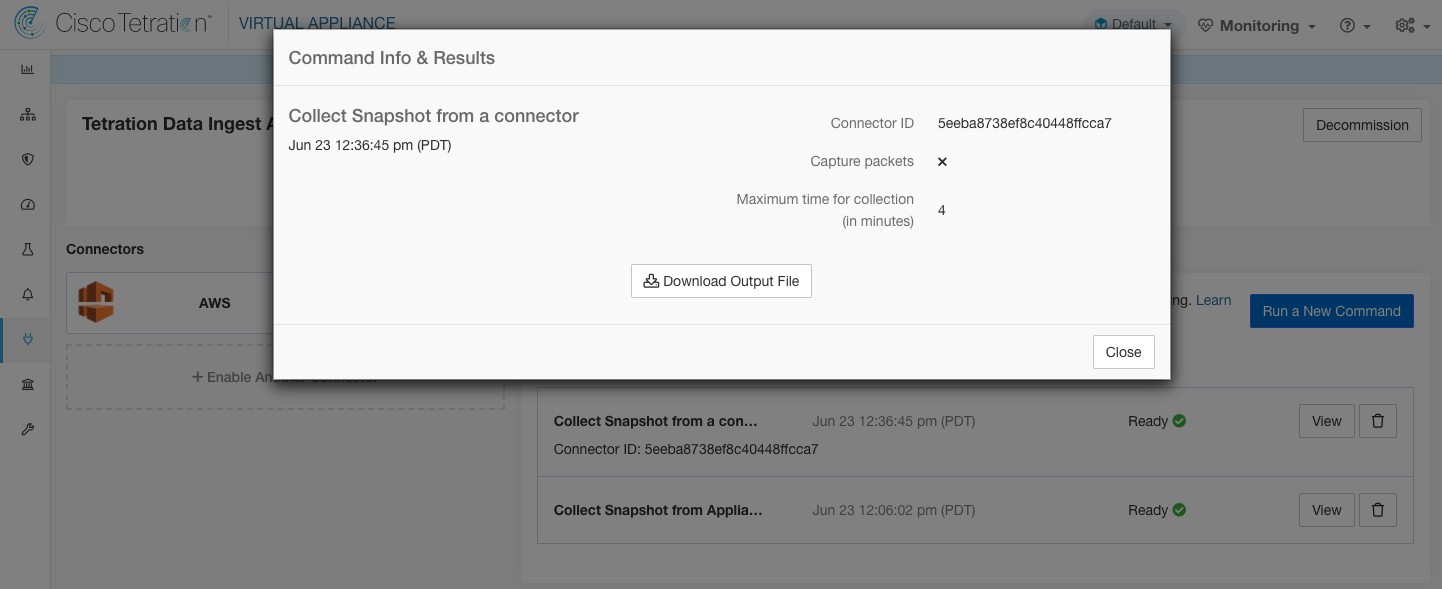

Secure Workload sends the command to the appliance where the connector is deployed. According to connector ID, the controller collects connector snapshot, encodes them and returns the result to Secure Workload. When the result is available at Secure Workload, a download button is presented to download the file in .tar.gz format.
Files included in the snapshot:
-
/usr/local/tet-netflow/conf
-
/local/tetration/{logs, sqlite}
-
/var/run/{supervisord.pid, tet-netflow.pid}
Command outputs included in the snapshot:
-
ps aux
-
netstat {-nat, -rn, -suna, -stna, -tunlp}
-
ss {-nat, -rn, -suna, -stna, -tunlp}
|
Argument Name |
Type |
Description |
|---|---|---|
|
Connector ID |
string |
Connector ID of the connector for which the snapshot command is run. |
|
Capture packets |
check-box |
Should packets be captured? |
|
Max time for collection in minutes |
number |
Maximum duration to collect before returning the results. Should be < 20 minutes. |
Allowed Secure Workload virtual appliances:Secure Workload Ingest and Secure Workload Edge
